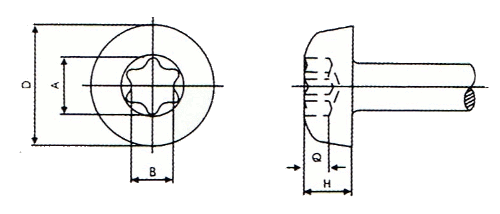

TORX RECESSED FLAT HEAD TYPE SIZE

PUNCHCODE
SCREWSIZE
A
B
D
H
Q
MAX
MIN
MAX
MIN
T6
#2
1.75
1.30
4.24
3.94
1.35
1.14
0.56
T8
#4
2.39
1.76
5.56
5.21
1.73
1.47
0.76
T10
#5
2.82
2.06
6.22
5.87
1.91
1.65
0.89
T10
#6
2.82
2.06
6.86
6.50
2.08
1.83
0.89
T15
#8
3.35
2.44
8.18
7.77
2.44
2.16
1.02
T25
#10
4.53
3.28
9.47
9.07
2.79
2.51
1.27
T10
M3
2.82
2.06
5.60
5.30
2.40
2.26
1.01—1.27
T10
M3.5
2.82
2.06
7.00
6.64
2.60
2.46
1.07—1.33
T20
M4
3.94
2.86
8.00
7.64
3.10
2.92
1.27—1.66
T25
M5
4.53
3.28
9.50
9.14
3.70
3.52
1.52—1.91
T30
M6
5.63
4.08
12.00
11.57
4.60
4.30
2.02—2.42

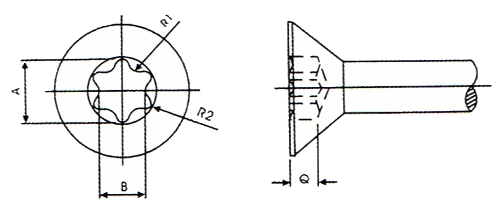

PUNCHCODE
SCREWSIZE
A
B
R1
R2
Q(ISO-14581)
Q(MAX)
T6
M2
1.75
1.30
0.34
0.17
0.51—0.64
1.14
T8
M2.5
2.39
1.76
0.47
0.23
0.66—0.79
1.35
T10
M3
2.82
2.06
0.56
0.27
0.70—0.83
1.40
T15
M3.5
3.35
2.44
0.67
0.30
1.16—1.32
1.19
T20
M4
3.94
2.86
0.81
0.34
1.12—1.51
2.39
T25
M5
4.53
3.28
0.87
0.43
1.12—1.51
3.05
T30
M6
5.63
4.08
1.14
0.50
1.39—1.78
3.30
